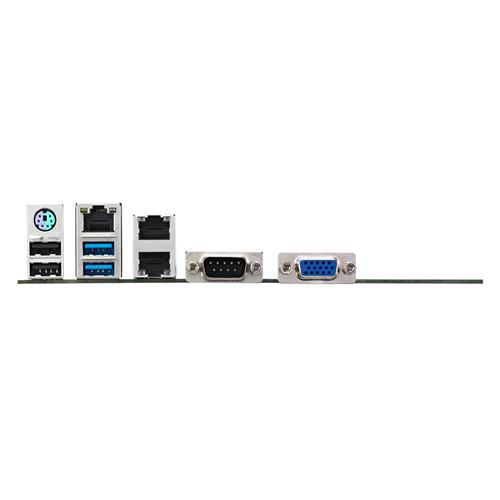

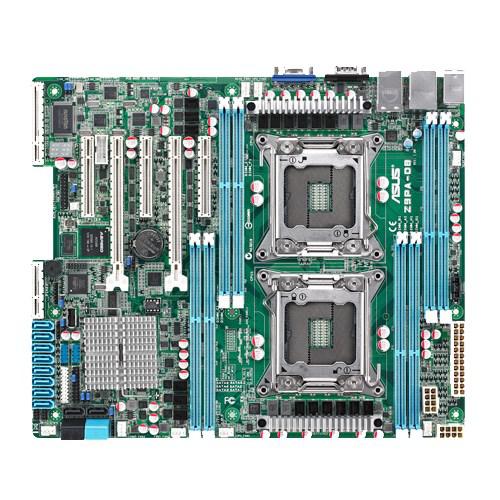

oto123 0 Posted June 3, 2019 1) მაქვს ქეისი Thermaltake Commander MS-I Gaming Case USB 3.0 Snow White - Powdered Interior Long Graphic Card 12.5-Inch Support Cases VN40006W2N , მაინტერესებს ჯდება თუ არა ამ ქეისში 2 პროცესორიანი დედაპლატა? ეს Asus Z9PA-D8 Dual LGA2011 C602-A DDR3 SATA3 USB3.0 2x 1GbE ATX Processor / System Bus 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family (135W) * Intel® Xeon® processor E5-2600 v2 product family (135W) QPI 6.4 / 7.2 / 8.0 GT/s Core Logic Intel® C602-A PCH Memory Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU) Capacity : Maximum up to 256GB LRDIMM Memory Type : DDR3 1866*/1600/1333/1066 RDIMM DDR3 1866*/1600/1333/1066 UDIMM DDR3 1866*/1333/1066 LRDIMM Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB RDIMM 8GB, 4GB, 2GB UDIMM 32GB, 16GB, 8GB LRDIMM Expansion Slots Total Slot : 5 Slot Location 2 : PCI-E x8 (Gen2 X4 Link) Slot Location 3 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 4 is occupied Slot Location 4 : PCI-E x8 (Gen3 X8 Link) Slot Location 5 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied Slot Location 6 : PCI-E x8 (Gen3 X8 Link), MIO supported Additional Slot 1 : PIKE Slot for Stroage expansion *1 Follow SSI Location# Form Factor ATX (12"x10") ASUS Features FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM Enterprise Storage SATA Controller : Intel® C602-A AHCI 4 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card ASUS PIKE 2108 8-port SAS2 6G RAID card ASUS PIKE 2208 8-port SAS 6G HW RAID card ASUS PIKE 2308 8-port SAS 6G RAID card Networking 2 x Intel® 82574L + 1 x Mgmt LAN Graphic Aspeed AST2300 with 16MB VRAM On Board I/O 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)*2 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)*3 1 x USB connector*4 2 x USB pin header , Up to 4 Devices 8 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header 1 x Management Connector , Onboard socket for management card Back I/O Ports 1 x External Serial Port 4 x External USB Port ﹝2 x USB 3.1 Gen 1, 2 x USB 2.0﹞ 1 x VGA Port 2 x RJ-45 + 1 x Mgmt LAN 1 x PS/2 KB/Mouse Management Solution ASWM Enterprise Optional ASMB6-iKVM for KVM-over-Internet EMI US (FCC, CFR47 Part 15, Class Europe (CE, EN55022 & EN55024) Environment Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) Accessories Gift Box Pack (1pcs per Carton): 6 x SATA Data Cables 1 x I/O Shield 1 x ASUS Mainboard Support CD 1 x ASWM Support CD 1 x User's Guide 1 x USB to SATA DOM Power cable Bulk Pack (10pcs per Carton): 1 x I/O Shield 1 x ASUS Mainboard Support CD 1 x ASWM Support CD 1 x User's Guide Product SKUs Standard Gift Box Pack Standard Bulk Pack Monitoring CPU Temperature Fan RPM Note * DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to www.asus.com for latest momory AVL update * Refer to ASUS Server AVL for latest update *1 1* PIKE Slot for Storage expansion (Gen3 supported) *2 95W or below CPU only, Minimum requirement of ATX Power supply: 1) 500W 2) All +12V output ≧20A *3 Support Both ATX & SSI Power Supply *4 Type A USB socket Quote Share this post Link to post Share on other sites
Gogla1990 3462 Posted June 5, 2019 მაზერი ATX-ა და წესით უნდა წავიდეს, აქვს სტანდარტული ATX-ების მხარდაჭერა მაგ კეისს Quote Share this post Link to post Share on other sites
